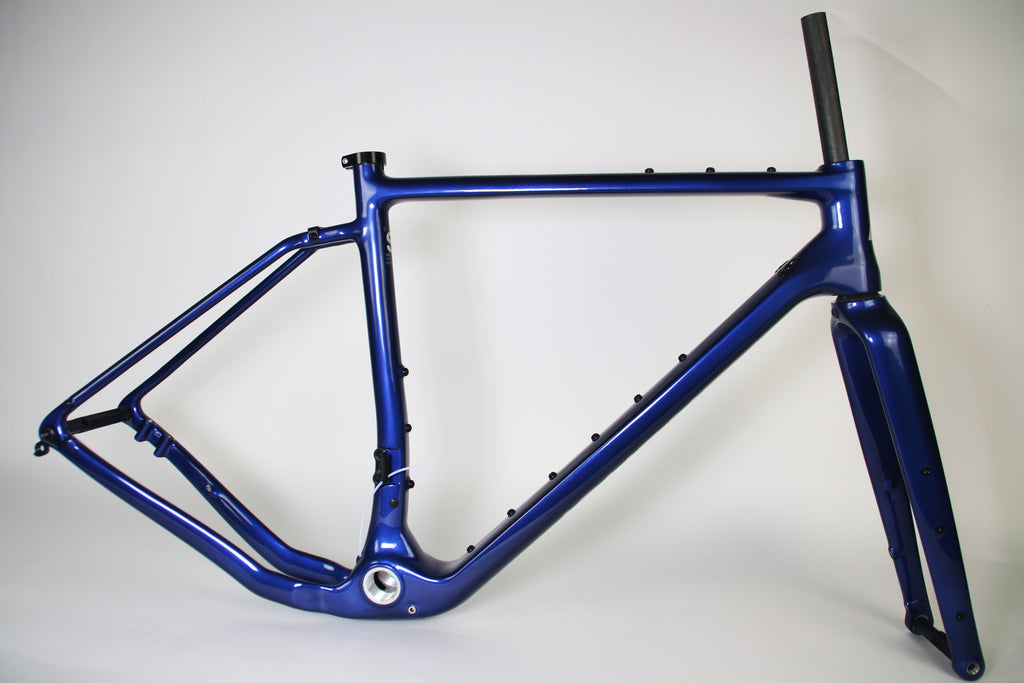

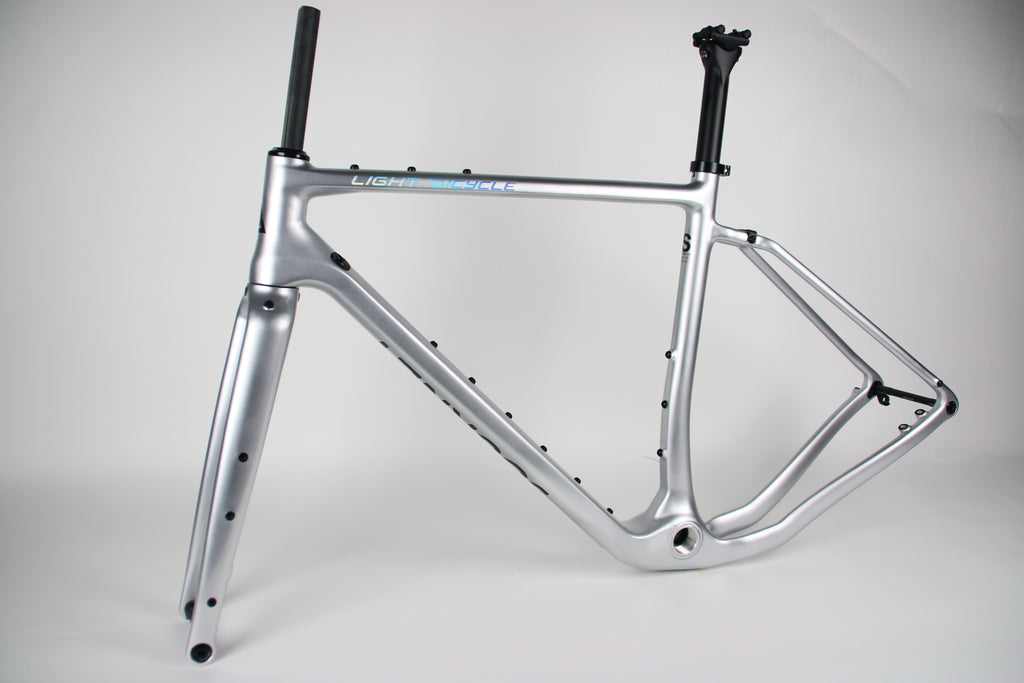

Journey Gravel CX Adventure Tour Frameset

Journey Carbon Gravel Frameset (700c)

A carbon gravel frameset built for long days on mixed terrain, with wide tire clearance, multiple mounting points, and a relaxed geometry suited to gravel, cyclocross, touring, and bikepacking.

Key Specifications

• Sizes: XS, S, M, L

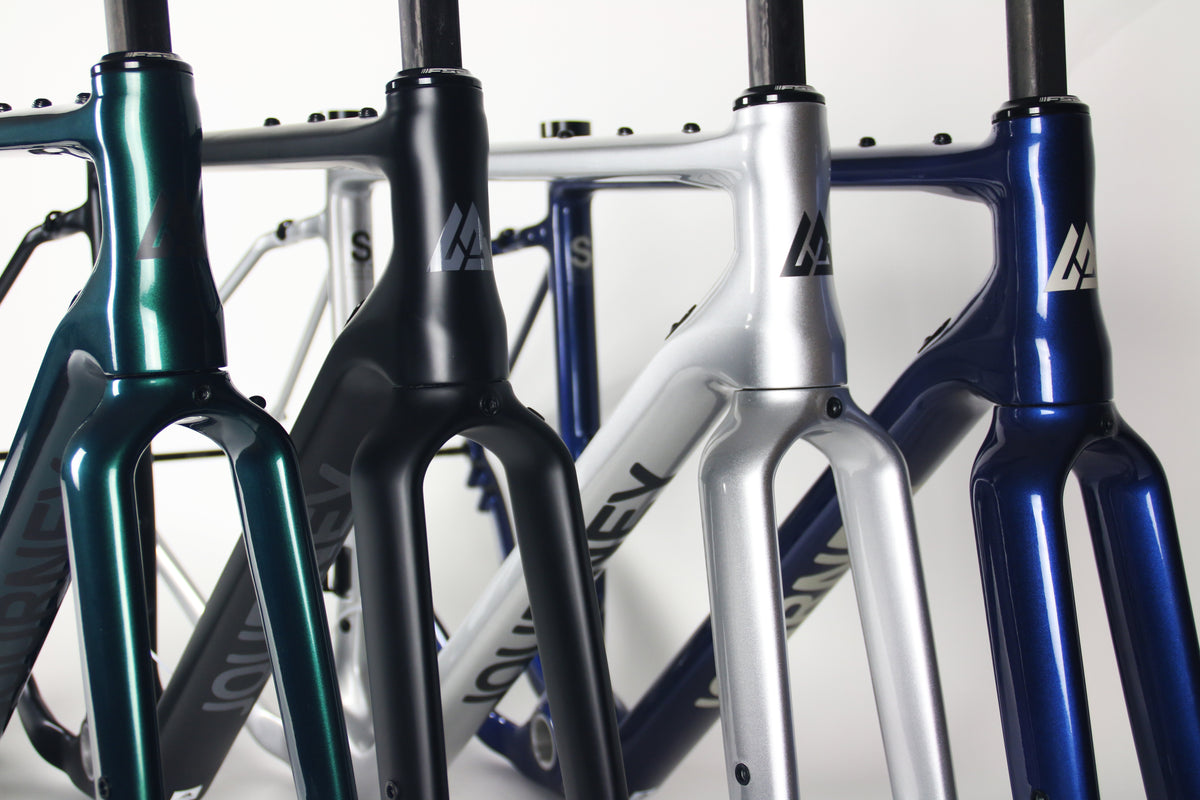

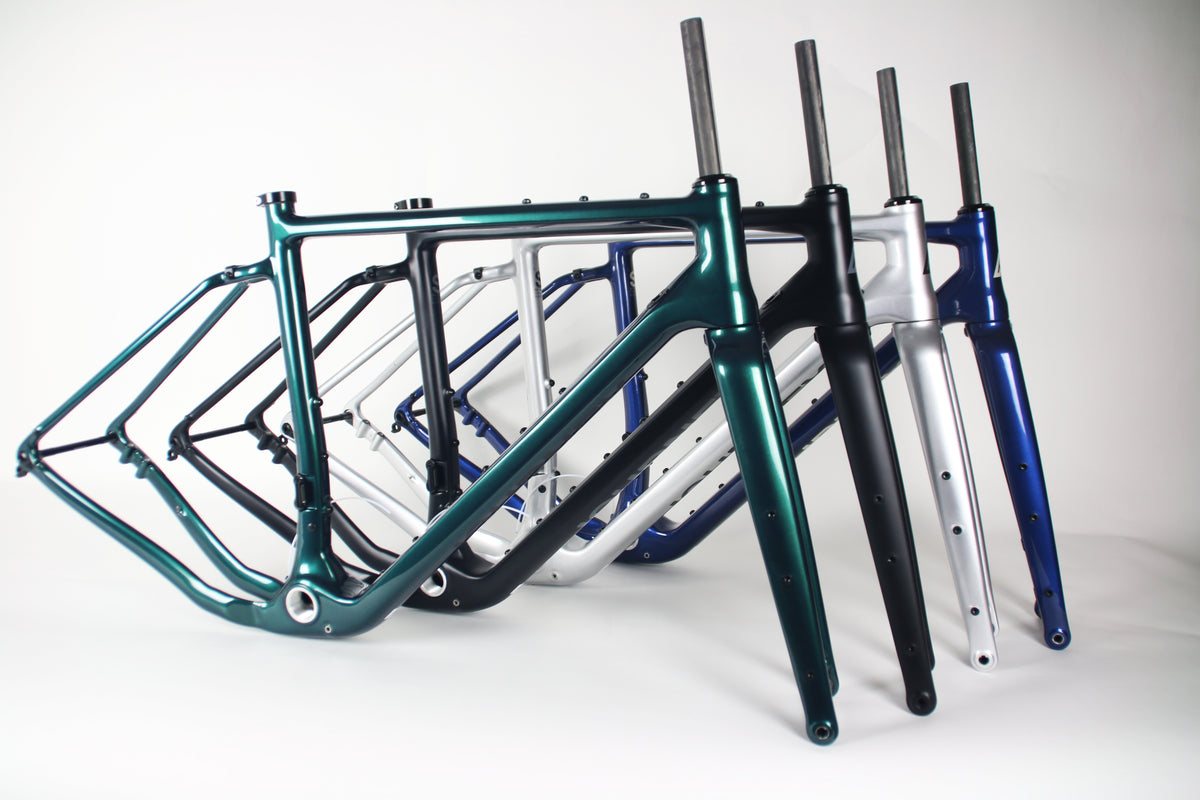

• Frame colors: Forest Green, Classic Black, Metallic Silver, Midnight Blue

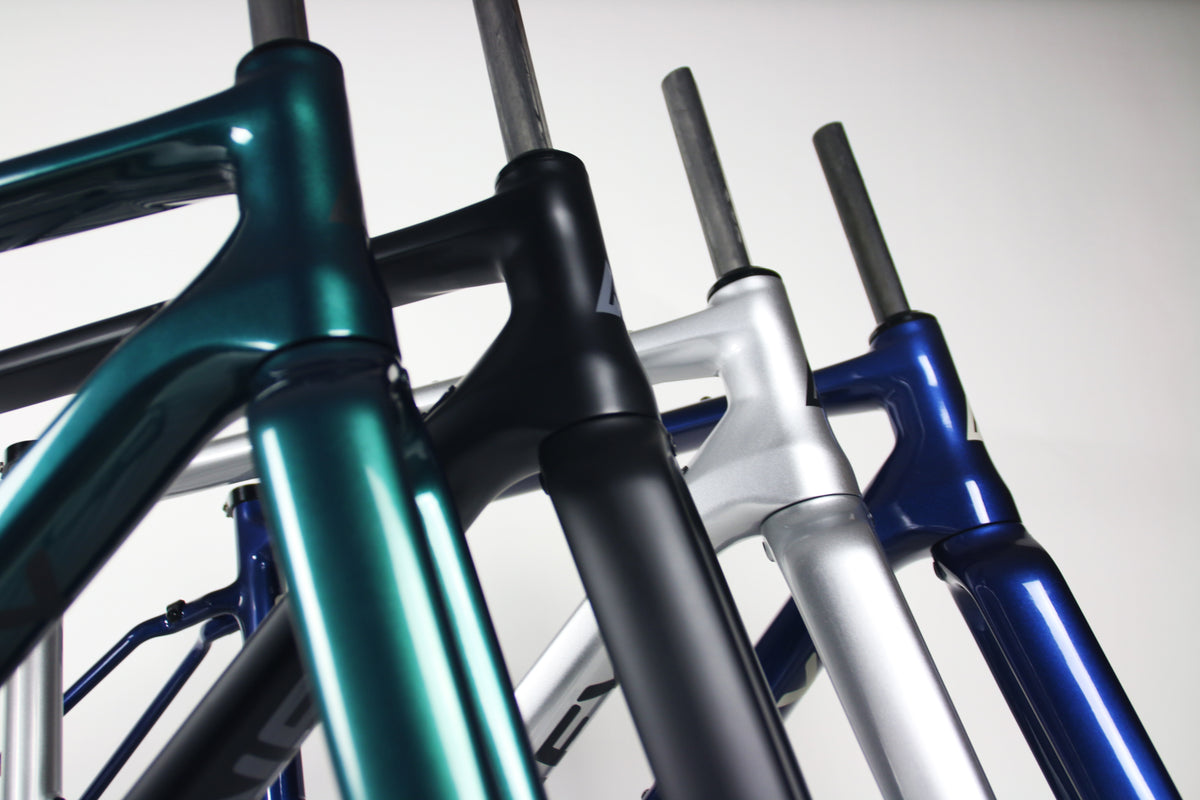

• Fork: full carbon, D-shape steerer, coating colour-matched to frame
• Seatpost: carbon, 31.6 x 350mm
• Head tube: 1 1/8" - 1 1/2" tapered

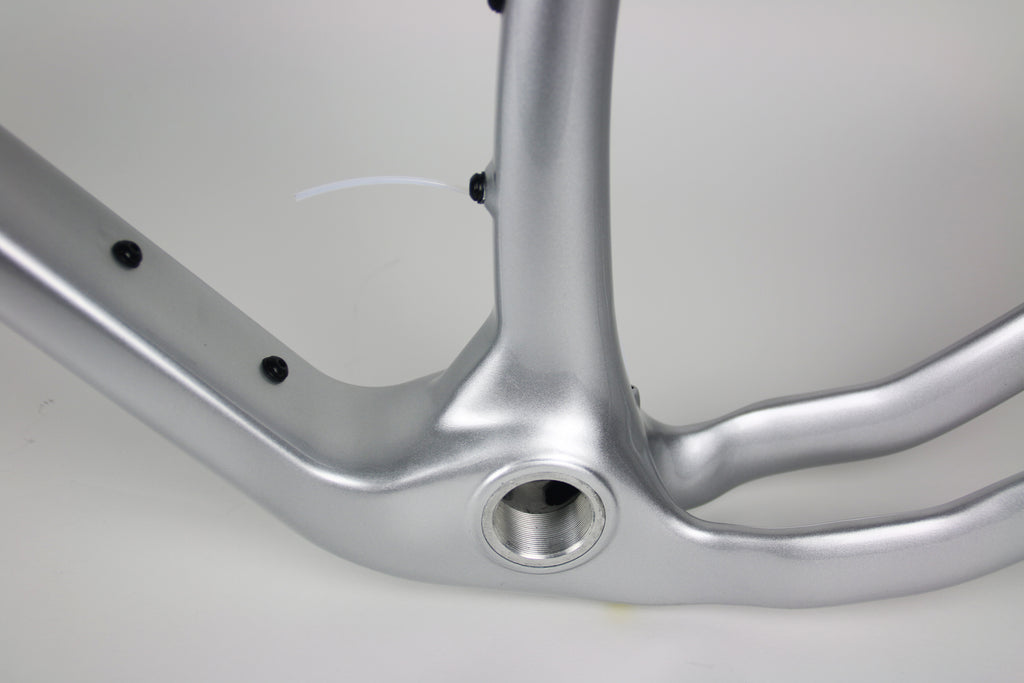

• Bottom bracket: BSA threaded, 68mm
• Brakes: flat mount disc, 140/160mm
• Axle spacing: 12x100mm front, 12x142mm rear
• Max chainring: 48/36T (2x) or 42T (1x)
• Drivetrain compatibility: mechanical or electronic (Di2 / eTap / Campagnolo EPS) - fully internal cable routing for electronic groupsets only
• Max tire size: 700x50C / 27.5x2.0" (S, M, L); 700x35C / 27.5x2.0" (XS)
• Recommended use: gravel, cyclocross, adventure touring, bikepacking
• Included in box: headset, D-shape compression plug, 12mm thru-axles (pair), cable stoppers, derailleur hanger

Highlights

Carbon construction - built to handle year-round riding at a light frame weight.

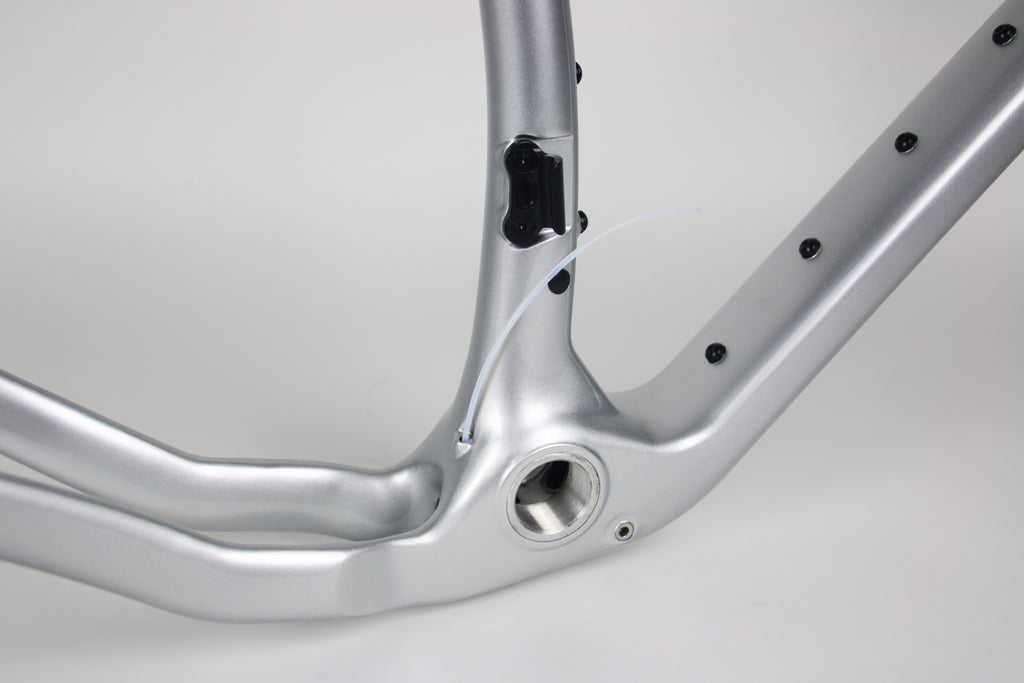

Internal cable routing - shift and brake lines run inside the frame for a cleaner, quieter setup.
Mounting points - room for bottles, cargo, and bikepacking bags.
Tire clearance - fits up to 700x50c / 27.5x2.0" with room either side.

Frame Weight by Size

Frame size	XS	S	M	L
A-Seat Tube	450mm	480mm	510mm	540mm
B-Effective Top Tube	521mm	542mm	559mm	574mm
C-Head Tube Length	110mm	137mm	165mm	195mm
D-Chainstay Length	415mm	420mm	425mm	430mm
E-Head Tube Angle	70.0°	70.8°	70.8°	70.8°
F-Seat Tube Angle	73.5°	73.5°	73.5°	73.5°
G-BB Drop	77.5mm	75.0mm	75.0mm	72.5mm
H-Front Center	594mm	604mm	622mm	639mm
I-Fork Length	400mm	400mm	400mm	400mm
J-Wheel Base	997mm	1013mm	1036mm	1059mm
K-Rake	56mm	51mm	51mm	51mm
L-Reach	362mm	375mm	384mm	392mm
M-Stack	537mm	563mm	590mm	616mm
N-Steerer Tube	300mm	300mm	300mm	300mm
O-Integrated Crown Race	126°	126°	126°	126°

Suggested rider height: XS 155-165cm, S 165-175cm, M 175-185cm, L 185cm+.

If you are on the edge of a suggested size: consider sizing up if you have longer legs or you want a more relaxed position; or size down for a more aggressive and maneuverable ride.
